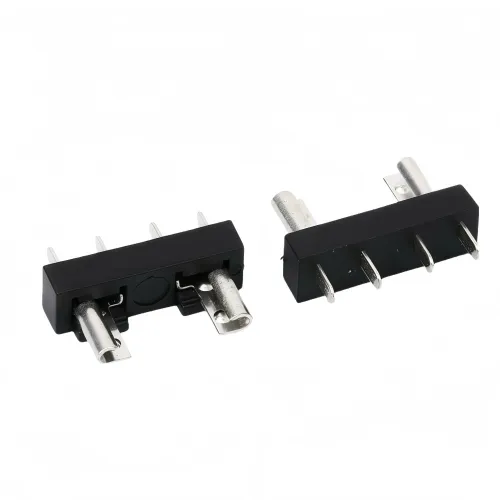

Preventing Arc Flash: The Critical Role of a High-Voltage DC Fuse Holder

Having spent 12 years in the electronic protection industry, I can tell you with certainty that the most dangerous failures I've witnessed in DC systems weren't caused by the fuse, but by the component holding it. The DC fuse holder is the stage upon which the entire safety drama unfolds. In a high-voltage DC fault, when the fuse blows, it releases a tremendous amount of energy in the form of a persistent, superheated arc. The holder's job is to contain that explosion and ensure the arc cannot find a new path to ground. If it fails, the results are terrifying. I’ve seen underrated holders literally vaporize, allowing an arc to turn an entire combiner box into a molten wreck.

This is why at GFEFUSE, we treat the design of a DC fuse holder with the same gravity as the fuse itself. It's a science of materials and distances. We use high-grade, glass-reinforced thermoset plastics or advanced polymers with a high Comparative Tracking Index (CTI), meaning they are extremely resistant to forming a conductive carbon track under arcing conditions. We meticulously engineer the physical layout to maximize the "creepage and clearance" distances—the physical space over surfaces and through the air between conductive parts. In a high-voltage DC fuse holder, a few extra millimeters of well-designed space is the difference between safety and disaster.

The terminals inside the DC fuse holder are another area of our intense focus. In high-power DC circuits, even a tiny amount of resistance from a poor connection generates significant heat (P = I²R). This heat is the enemy of safety and reliability. Our holders use high-conductivity, high-pressure contacts to ensure a solid, cool-running connection to the fuse. For our DIN rail models popular in solar installations, the clamping mechanism is designed to withstand vibration and thermal cycling without losing its grip. For our heavy-duty bolt-down DC fuse holder blocks, we ensure the connecting surfaces are perfectly flat and plated to prevent oxidation and maintain low resistance over decades of service.

Ultimately, when you specify a DC fuse holder, you are specifying a complete safety insulation system. You are placing your trust in its ability to withstand a worst-case scenario. My experience has taught me that this is no place to cut corners. A certified, robustly engineered holder from a dedicated manufacturer like GFEFUSE is the only responsible choice. It’s the unseen hero that ensures when the fuse makes the ultimate sacrifice, it’s not in vain, and the system is truly protected. This is the principle we build into every single DC fuse holder that we produce.
