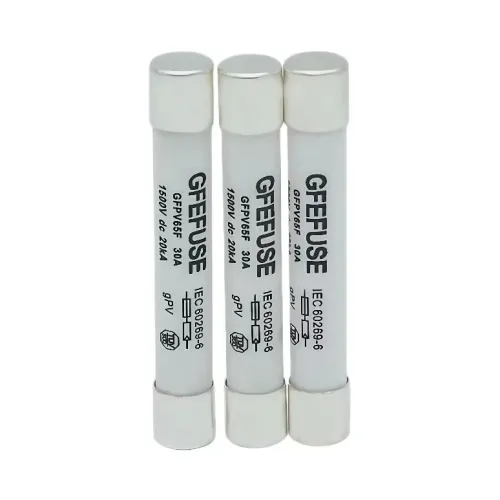

The Ultimate Engineer's Guide to Selecting a PV Fuse

In my 12 years in the electronic protection business, I’ve had a front-row seat to the solar energy boom. I've also seen the dangerous consequences of underestimating the unique physics of a photovoltaic array. I've analyzed field reports of melted combiner boxes and even fires, and the root cause is often a misunderstanding of what a PV fuse actually does. It's not just a simple overcurrent device. Its most important job is to protect against a subtle but destructive force: reverse current. When one panel in a string is shaded or fails, it can turn from a power producer into a resistor, and the healthy panels will force current backwards through it. This low-level, sustained current generates immense heat, and it’s a danger a standard fuse was never designed to see.

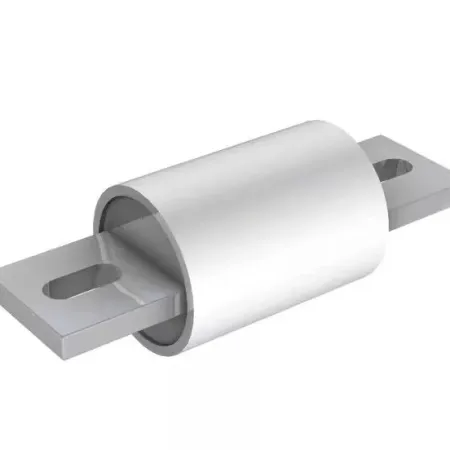

At GFEFUSE, engineering a world-class PV fuse is an obsession. It begins with designing an element that is extremely sensitive to these low-fault currents, ensuring it opens the circuit before a panel can dangerously overheat. At the same time, it must be robust enough to handle the massive short-circuit current that can occur in a line-to-line fault. And it has to do all of this while operating at 1500 volts of direct current, an environment where electrical arcs are incredibly difficult and violent to extinguish. The ceramic body and specialized arc-quenching sand inside every PV fuse we make are the result of years of R&D, designed to safely absorb that energy and prevent a catastrophic failure.

Furthermore, the life of a PV fuse is one of extreme hardship. It sits in a combiner box on a rooftop or in a field, baking in the sun by day and freezing at night, for 25 years. This thermal cycling is a brutal test of a component's durability. We use advanced materials and construction techniques to ensure our fuses can withstand this punishment without degradation. The reliability of the entire multi-million-dollar solar asset depends on the integrity of this small, often overlooked component. A cheap PV fuse that fails prematurely can lead to costly downtime and difficult-to-diagnose production losses.

I tell every solar developer and EPC I work with to think of the PV fuse not as a commodity, but as a long-term insurance policy. It's the silent, unseen guardian that ensures their asset is protected from the inside out. It's a small component that shoulders an immense responsibility for the safety and financial viability of the entire project. At GFEFUSE, we build every PV fuse to be worthy of that immense responsibility, providing the peace of mind that allows the clean energy revolution to move forward safely and reliably.
