Why You Can't Use an AC Fuse for a DC Circuit: A DC Fuse Deep Dive

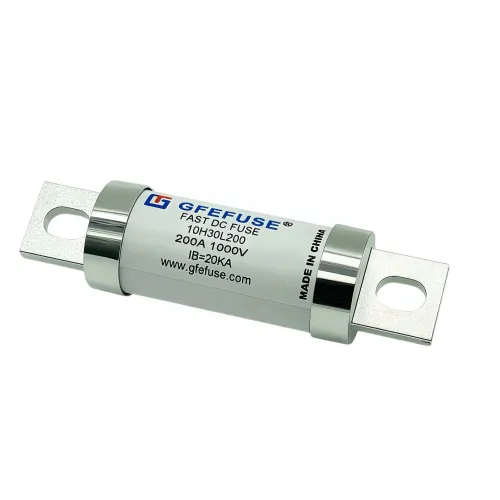

In my 12 years immersed in the electronic protection industry, I’ve learned that the most dangerous force isn't the current you see, but the one that refuses to let go. That is the fundamental challenge of direct current. While AC current gives you 120 chances every second to extinguish an electrical arc as it crosses the zero point, DC current is a relentless, unwavering force. Once an arc is established in a DC fault, it wants to burn forever. I’ve seen the catastrophic aftermath of using the wrong fuse in a DC circuit: melted terminals, destroyed equipment, and evidence of intense fires, all because the fuse was simply incapable of taming that arc. This is why the specialized dc fuse is not just a component; it's a feat of engineering born from necessity.

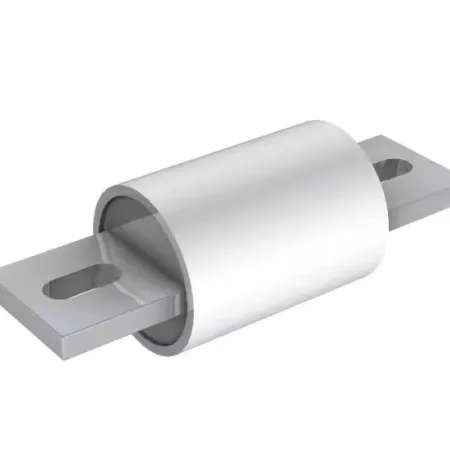

At GFEFUSE, our entire design philosophy for a dc fuse is built around conquering that persistent arc. It begins with the fuse element itself, which is designed not just to melt, but to vaporize in a very specific way that helps increase the arc voltage. More importantly, the bodies of our high-voltage DC fuses are typically filled with high-purity quartz sand. This isn't just filler; it's a critical arc-quenching medium. When the element vaporizes, the intense heat melts the surrounding sand into a glass-like structure called a fulgurite, which cools, contains, and smothers the arc, absorbing its energy and safely breaking the circuit. The engineering required to perfect this process for every dc fuse we make is what sets a true protection device apart from a simple piece of wire in a tube.

The new energy revolution has put a massive spotlight on the importance of the dc fuse. Think of a solar array or an electric vehicle's battery pack—these are massive sources of DC power. In these applications, the fuse must be able to safely interrupt potentially huge fault currents without failing catastrophically. That’s why our R&D at GFEFUSE is so heavily focused on increasing the interrupting capacity and voltage ratings of our products. We rigorously test every dc fuse design to ensure it can handle a worst-case scenario, providing the ultimate safeguard for these very expensive and powerful systems.

I tell every engineer I work with that the voltage rating on a dc fuse is a non-negotiable law. You can never go below your system voltage. An underrated fuse is a guaranteed point of failure. The selection of a high-quality, correctly-rated fuse from a specialized manufacturer is the single most important decision you can make to ensure the safety and longevity of any DC-powered system. It’s a small component with an immense responsibility, and at GFEFUSE, we build every dc fuse to be more than capable of shouldering that responsibility.
